Bucket elevator is suitable for conveying powder, granular and small block cutting and grinding small materials, such as: coal, cement, stone, sand, clay, ores, etc. Since the traction mechanism of the hoist is an endless chain, it is allowed to transport high-temperature materials (material temperature does not exceed 250 ℃). The general conveying height is less than or equal to 40 meters.
24HOURS：+86 15237197009

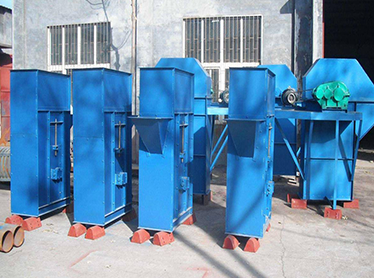

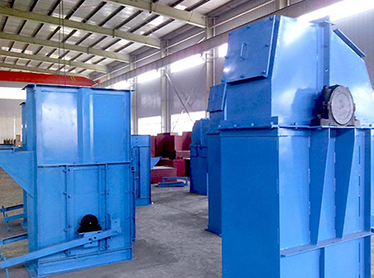

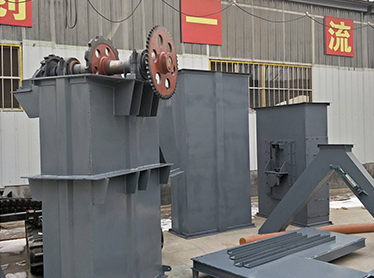

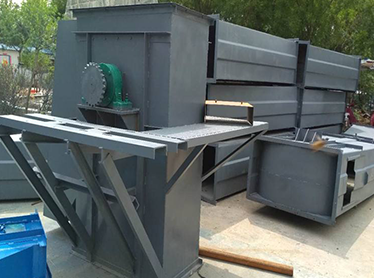

Bucket elevator is a continuous conveying machine that uses a series of hoppers evenly fixed on the endless traction member to vertically lift materials. The bulk material is transported vertically inward and upward.
Advantages1. The driving power is small, there is no material return and excavation phenomenon, and the ineffective power is small.
2. Wide lifting range, good sealing performance and less environmental pollution.
3. Good operation reliability, first run smoothly.
4. Long service life, less scattering when unloading, reducing mechanical wear.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Capacity (m³/h) | Speed (m/s) | Material size (mm) | Bucket volume (L) | Tube Spacing(mm) | ||
| ZH | SH | ZH | SH | ||||
| TH210 | 20 | 33 | 1.4 | ﹤30 | 2.5 | 5 | 500 |
| TH315 | 35 | 60 | 1.4 | ﹤35 | 3.7 | 6 | 5 1 2 |
| TH400 | 58 | 94 | 1.4 | ﹤40 | 5.9 | 9.5 | 5 1 2 |
| TH500 | 75 | 118 | 1.5 | ﹤50 | 9.3 | 15 | 688 |
| TH630 | 114 | 185 | 1.5 | ﹤60 | 14.6 | 23.6 | 688 |
Related Cases
Product Introduction
Advantages
Technical Parameters
Throughput：150 t/h
Material：Gold ore
