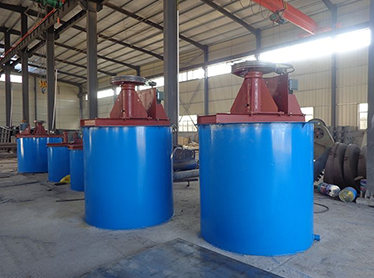

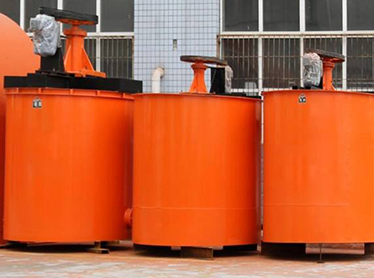

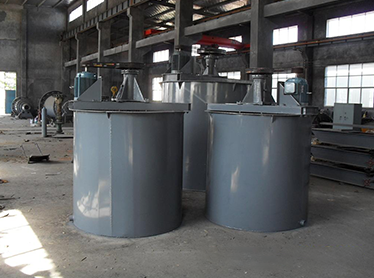

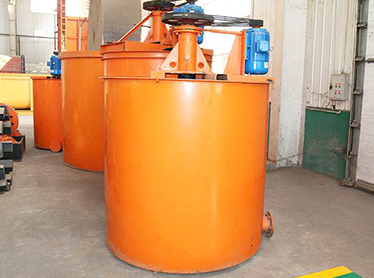

The mixing tank is a necessary equipment for the rotation of the impeller driven by the motor V-belt to fully mix the medicine and the pulp evenly, and to increase the reaction time of the medicine and strengthen the quality of the medicine reaction. Stir.
24HOURS：+86 15237197009
The mixing tank is suitable for all kinds of metal ores. It is mainly used for stirring before flotation, so that the agent and the pulp can be fully mixed, and it can also be used for the stirring of other non-metallic minerals. It is used in a concentration of not more than 30% (by weight) of fixed ingredients with a particle size of less than 1mm. Its form is a flat-bottomed barrel-shaped radial circulation spiral impeller mechanical stirring type.
Advantages1. The structure is compact, the sealing is good, and the ash blocking plate is set at the feeding port to prevent the water mist from being reversed.
2. Stir evenly, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring.
3. The residual ash rate is low, and the setting of the watershed at the bottom of the box ensures that there is no dead angle in the equipment.
4. Advanced performance, stable quality of finished products, uniform stirring and rapid discharge.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Inner diameter of groove (mm) | Groove height (mm) | Effective volume (mm) | Impeller diameter (mm) | Impeller speed (r/min) | motor model | Power (kw) | Weight (kg) |
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
