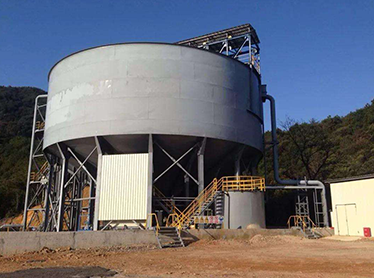

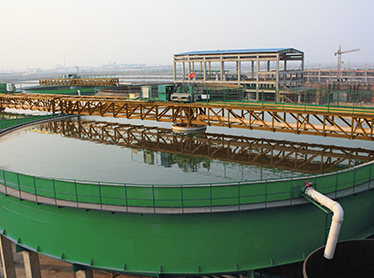

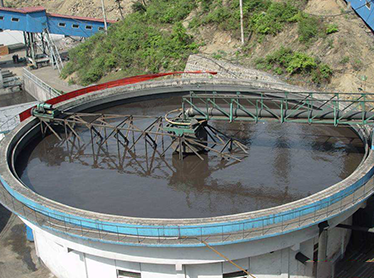

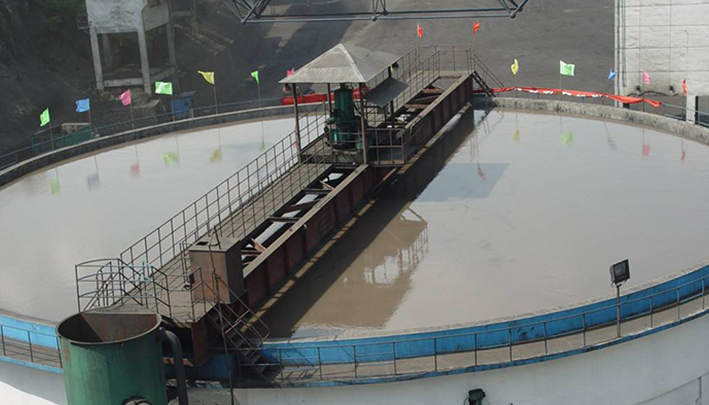

The thickener is widely used in leaching and washing equipment in cyanide plants. It has the functions of concentration washing and buffering. According to the different transmission modes, thickeners can be divided into two types: central transmission type and peripheral transmission type.
24HOURS：+86 15237197009
Advantages1. The continuous ore discharge method can reduce the multiple cycles of liquid gold.
2. Extend the time of pulp in the thickener and improve the leaching rate.
3. Countercurrent washing, continuous work, large volume and high washing efficiency.
4. Small footprint, reasonable structure, low operation and maintenance costs.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Tank diameter（mm） | Tank depth(mm) | Subsidence Area(㎡) | Capacity（t/d） | Motor | Power (kw) | Steel tank weight（kg） | Weight (kg) |
| NZSG-2.5 | 2500 | 1850 | 4.9 | 5-22.4 | Y90L-6 | 1.1 | 1000 | 2225 |
| NZSG-3A | 3000 | 1800 | 7 | 5-23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
| NZSG-3 | 3600 | 1800 | 10.2 | 5-28.5 | Y100L-6 | 1.5 | 2097 | 3680 |
| NZSG-5 | 5000 | 2956 | 16 | 16-90 | Y90L-4 | 1.5 | 5160 | 7908 |
| NZSG-6 | 6000 | 2956 | 28.3 | 98 | Y90L-4 | 1.5 | 5769 | 8772 |
| NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8800 | 13862 |
| NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19158 |
| NZSG-9 | 9000 | 3376 | 63 | 210 | Y132S-6 | 3 | 15418 | 21733 |
| NZSG-12 | 12000 | 3600 | 113 | 370 | Y132S-6 | 3 | 25589 | 34823 |
| NZSG-15 | 15000 | 3600 | 176 | 580 | Y132S-4 | 5.5 | 35800 | 54315 |
| NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-4B | 7.5 | 52485 | 73588 |
| NZSG-20 | 20000 | 4400 | 315 | 1400 | YCT200-4B | 7.5 | 59365 | 76312 |

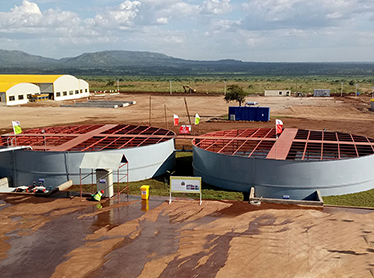

Related Cases
