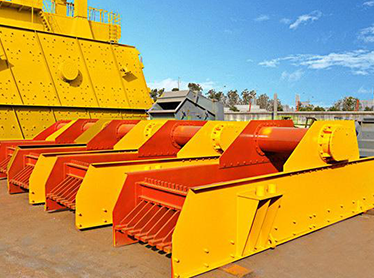

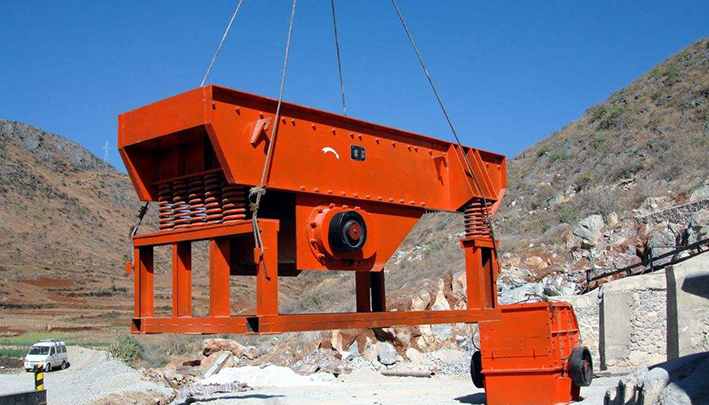

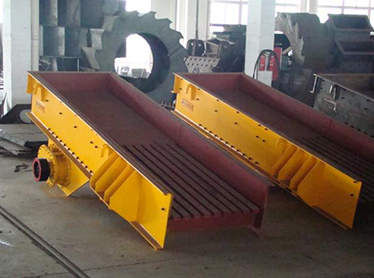

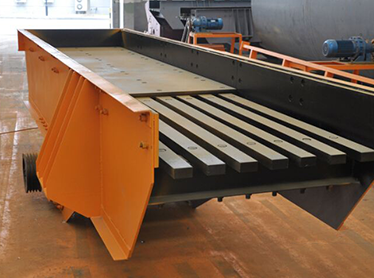

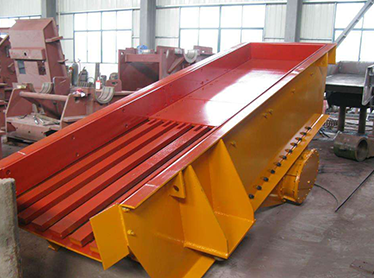

Vibrating feeder refers to a device that can uniformly, regularly and continuously feed block and granular materials from the storage bin to the receiving device. It is widely used in crushing and screening combined equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.
24HOURS：+86 15237197009
Advantages1. Simple structure, easy installation, stable vibration, reliable operation, long life, easy maintenance and repair, easy to realize automatic control.
2. Using a double-shaft vibrator, linear vibration, the screening process is completed at the same time of feeding, which improves the utilization rate of the equipment and reduces the cost.
3. Continuously and uniformly feed the material, and at the same time carry out coarse screening of the material.
4. Optional frequency conversion motor, adjust the frequency, easy to control the feeding amount.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Chute size(mm) | Maximum feed size(mm) | Capacity(t/h) | Eccentric shaft speed(r/min) | Motor Power (kw) | Weight(kg) |
| ZSW-380×95 | 3800×950 | 500 | 96-160 | 800 | 11 | 4082 |
| ZSW-420×110 | 4200×1100 | 580 | 120-240 | 800 | 15 | 4149 |
| ZSW-490×960 | 4900×960 | 500 | 120-240 | 800 | 15 | 5351 |
| ZSW-490×110 | 4900×1100 | 630 | 120-280 | 800 | 15 | 5352 |
| ZSW-590×110 | 5900×1100 | 630 | 350-500 | 800 | 22 | 6130 |
| ZSW-600×130 | 6000×1300 | 750 | 400-560 | 800 | 7800 |
