The single hammer of the box crusher is heavy, the rotor speed is high, and the moment of inertia of the hammer is large, which fully embodies the advantages of crushing small and heavy and light, and has the unique ability of cannibalizing crushing of super-large stones.
24HOURS：+86 15237197009

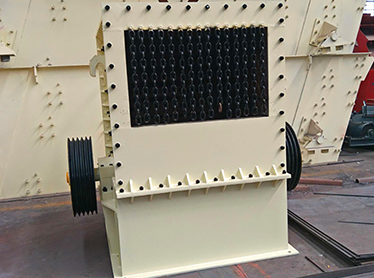

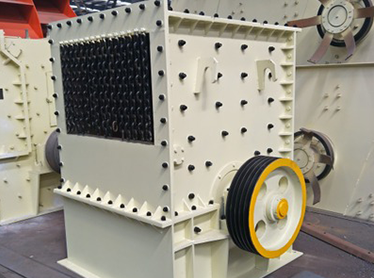

Box crusher is also called box hammer crusher. It is improved on the basis of the original hammer crusher. It has a larger feeding space and can directly crush materials with a side length of 450-1400mm into powder with a particle size of 120mm.
Advantages1. The feeding granularity is large, the crushing ratio is large, and the discharging is uniform.
2. The installation of the hammer head is adjustable, and the hammer head has a long service life.
3. The grid size is adjustable, the product size is controllable, and the particle shape is good.
4. Coarse and medium crushing is completed in one step, which simplifies the technological process.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Specification (mm) | Inlet size (mm) | Maximum feeding size (mm) | Processing capacity (t/h) | Motor power (kw) | Dimensions (LxWxH) (mm) |
| PF-1007 | 1000x700 | 400x730 | 300 | 30-70 | 4P 37-45 | 2330x1660x2300 |
| PF-1010 | 1000x1050 | 400x1080 | 350 | 50-90 | 4P 45-55 | 2370x1700x2390 |
| PF-1210 | 1250x1050 | 400x1080 | 350 | 70-130 | 6P 110 | 2680x2160x2800 |
| PF-1214 | 1250x1400 | 400x1430 | 350 | 80-180 | 6P 132 | 2650x2460x2800 |
| PF-1315 | 1320x1500 | 860x1520 | 500 | 100-280 | 6P 200 | 3180x2720x3120 |
| PF-1320 | 1300x2000 | 993x2000 | 500 | 140-380 | 6P 250 | 3220x3100x3120 |
| PF-1520 | 1500x2000 | 830x2040 | 700 | 200-550 | 4P 315-400 | 3959x3564x3330 |
| PF-1820 | 1800x2000 | 1260x2040 | 800 | 300-800 | 6P 630-710 | 4400x3866x4009 |
