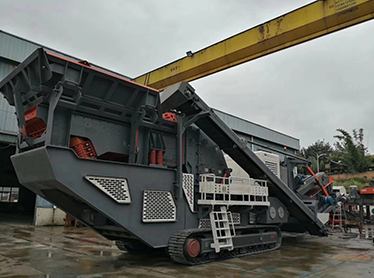

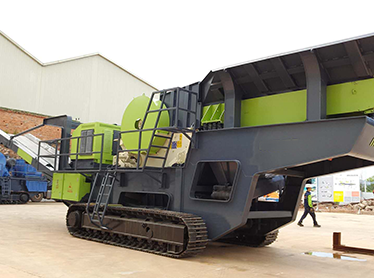

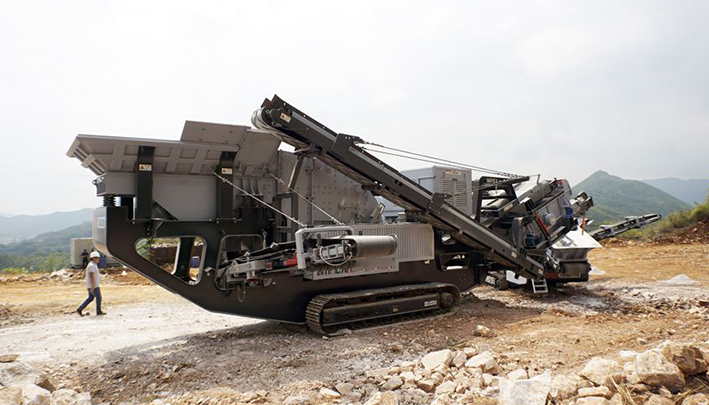

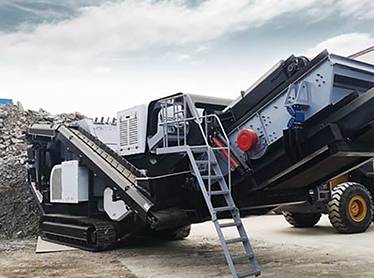

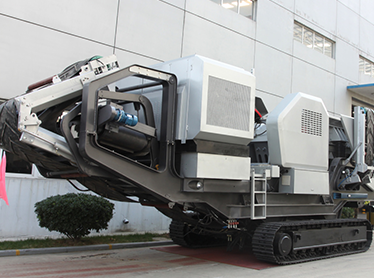

Crawler mobile crushing station is a kind of high-efficiency crushing equipment, which adopts self-driving mode, advanced technology and complete functions. This equipment has a large crushing ratio, and its optimized design can meet the most required technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
24HOURS：+86 15237197009
The crawler mobile crusher is widely used in large-scale mine production bases. It integrates material receiving, crushing, screening, and overall walking, etc., so that the entire production process has strong continuity and achieves the purpose of high-yield production.
Advantages1. The crawler-type mobile crushing station products are light in weight and small in size, especially suitable for work in narrow sites;
2. Convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional attachments, wide adaptability.
3. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, and quick-change device.
4. It can be used for climbing operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model parameters | WT200HPMS-E | WT300HPMS-E | WT400HPMS-E | WT160SCS-E | WT250SCS-E | |
| Feeding device | Maximum feeding size (mm) | 185 | 200 | 280 | 200 | 215 |
| Feeding height (mm) | 2600 | 2700 | 2800 | 2800 | 2900 | |
| Silo volume | 5 | 5 | 6 | 5 | 6 | |
| Feeding belt conveyor | Width x length(mm) | 1000x5500 | 1000x6000 | 1200x6500 | 1200x6000 | 1200x6500 |
| crusher host | model | HPM200 | HPM300 | HPM400 | SC160 | SC250 |
| Inlet size (mm) | 210 | 230 | 300 | 230 | 250 | |
| Weight(t) | 10.4 | 15.8 | 23 | 11 | 15 | |
| Drive method | Motor V belt | Motor V belt | Motor V belt | Motor V belt | Motor V belt | |
| Main belt conveyor | Width x length(mm) | 1200x10500 | 1000x11500 | 1200x11500 | 1200x11500 | 1200x11500 |
| Unloading height (mm) | 3300 | 3500 | 3500 | 3500 | 3500 | |
| Screening system | Type | Single layer vibrating screen | Single layer vibrating screen | Single layer vibrating screen | Single layer vibrating screen | Single layer vibrating screen |
| Screen size (mm) | 1500x3600 | 1500x3600 | 1500x4200 | 1500x3600 | 1500x4200 | |
| Return material belt conveyor size (mm) | 500x8000 | 500x9000 | 500x9000 | 500x9000 | 500x9000 | |
| Fine material belt conveyor size (mm) | 1200x5000 | 1000x6000 | 1200x6000 | 1200x6000 | 1200x6000 | |
| Unloading height of fine material belt conveyor (mm) | 3000 | 3100 | 3200 | 3100 | 3200 | |
| Powertrain | Crusher drive concept | Mains/external generator set | Mains/external generator set | Mains/external generator set | Mains/external generator set | Mains/external generator set |
| engine | Cummins | Cummins | Cummins | Cummins | Cummins | |
| Transport dimensions | Length(mm) | 17000 | 18500 | 19000 | 18500 | 19000 |
| Width(mm) | 3300 | 3500 | 3500 | 3500 | 3500 | |
| Height (mm) | 3600 | 3700 | 3700 | 3700 | 3700 | |
| Weight(t) | 45 | 55 | 65 | 50 | 60 | |
Related Cases
Product Introduction
Advantages
Technical Parameters
Throughput：150 t/h
Material：Gold ore
