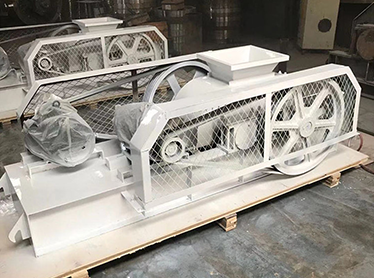

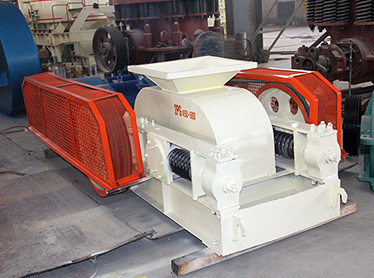

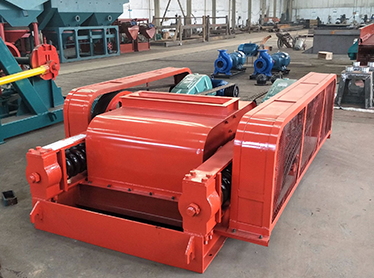

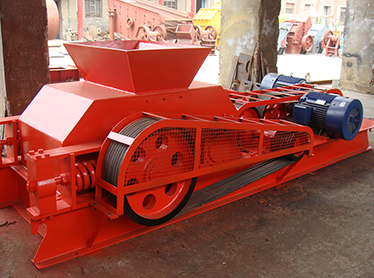

The roller crusher is composed of a motor, a bracket, a fixed roller, a movable roller and a safety spring. Most of the roller surfaces are smooth. The bearing of the movable roller can be moved along the frame and supported by a strong safety spring. When a particularly hard object falls in, the bearing can be removed and the object can be spit out.
24HOURS：+86 15237197009
Advantages1. The output can be increased by 30%-40%, and the total energy consumption can be reduced by 2-%-30%.
2. The double-roller coal crusher has compact structure, light weight and small volume.
3. The toothed roller crusher has a simple structure, a smaller footprint and more convenient maintenance.
4. Easy to operate, can be freely matched with the production line.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Roller Diameter(mm) | Roller Width(mm) | Feeding Size(mm) | Discharging Size(mm) | capacity(t/h) | Motor Power(kw) |
| 2PG400x250 | 400 | 250 | <35 | 2-8 | 2-10 | 5.5x2 |
| 2PG400x400 | 400 | 400 | <35 | 2-8 | 5-15 | 7.5x2 |
| 2PG610x400 | 600 | 400 | <40 | 2-8 | 10-20 | 15x2 |
| 2PG750x500 | 750 | 500 | <40 | 2-8 | 15-30 | 18.5x2 |
| 2PG800x600 | 800 | 600 | <40 | 2-8 | 25-40 | 22x2 |
| 2PGY1000x700 | 1000 | 700 | <60 | 2-8 | 35-60 | 30x2 |
| 2PGY1200x800 | 1200 | 800 | <60 | 2-8 | 50-100 | 45x2 |
| 2PGY1500x800 | 1500 | 800 | <80 | 2-8 | 90-140 | 90x2 |
| 2PGY1500x1000 | 1500 | 1000 | <80 | 2-8 | 120-180 | 110x2 |
| 2PGY1800x1000 | 1800 | 1000 | <100 | 2-8 | 160-240 | 160x2 |
Related Cases
Product Introduction
Advantages
Technical Parameters

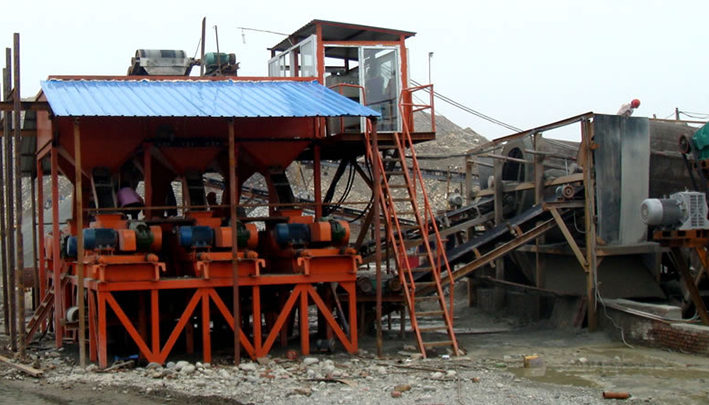

Throughput：150 t/h
Material：Gold ore
