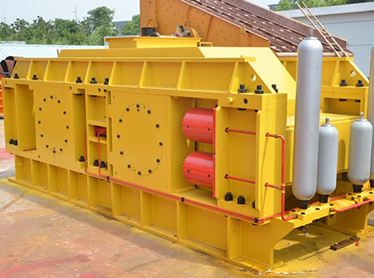

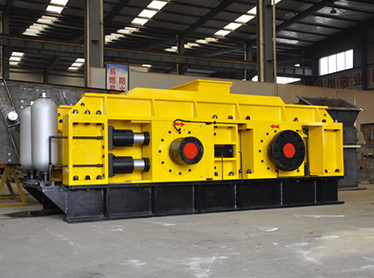

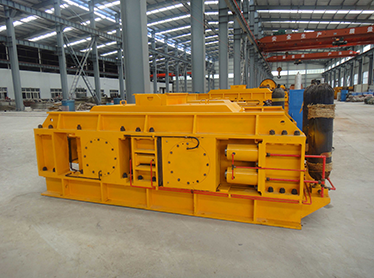

The hydraulic roller crusher has a simple structure, small footprint, and convenient operation and maintenance. It is equipped with a dust-proof board inside, with good sealing performance, and is widely used in fine crushing operations in cement clinker, sand making, building materials, mining, chemical industry, steel cement clinker and other industries.
24HOURS：+86 15237197009
The hydraulic roller crusher is mainly composed of fixed and movable crushing rollers, pressing and adjusting devices, and driving devices. Mainly through the cylindrical two rollers to extrude, impact, rub, grind and crush the material.
Advantages1. The crushing capacity is large, and the motor and the reducer are connected by a torque-limiting hydraulic coupling to prevent power overload.
2. The gear roller spacing is hydraulically adjusted and the gear roller bearing is lubricated centrally.
3. Optimized design of tensile and shear tooth profile selection, low crushing consumption and uniform granulation.
4. Low noise, simple structure, convenient maintenance, and uniform particle size of crushed materials.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Roller diameter (mm) | Feed size (mm) | Capacity (t/h) |
| 2PGT400x250 | ≤400 | ≤25 | 2-10 |
| 2PGT400x400 | ≤400 | ≤25 | 5-12 |
| 2PGT610x400 | ≤610 | ≤30 | 5-20 |
| 2PGT750x500 | ≤750 | ≤30 | 10-40 |
| 2PGT800x600 | ≤800 | ≤40 | 12-50 |
| 2PGY800x1000 | ≤800 | ≤40 | 50-80 |
| 2PGY1000x800 | ≤1000 | ≤40 | 45-80 |
| 2PGY1000x1000 | ≤1000 | ≤40 | 50-100 |
| 2PGY1000x1200 | ≤1000 | ≤40 | 50-120 |
| 2PGY1200x1000 | ≤1200 | ≤50 | 60-130 |
| 2PGY1200x1200 | ≤1200 | ≤50 | 80-150 |
| 2PGY1500x1000 | ≤1500 | ≤80 | 120-200 |
| 2PGY1800x1000 | ≤1800 | ≤80 | 150-230 |
| 2PGY2000x1000 | ≤2000 | ≤100 | 320-350 |
