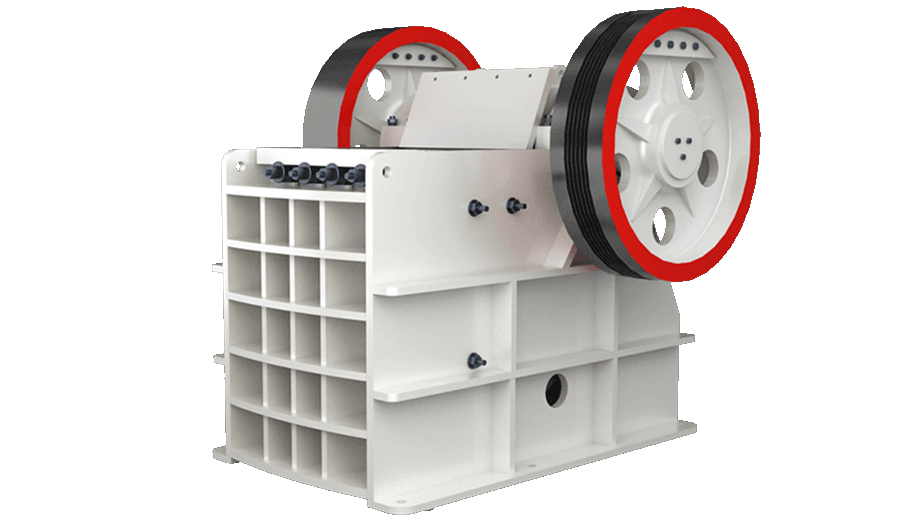

Jaw crusher is a common crushing equipment in the mining industry. It uses the principle of mutual squeezing between jaw plates to process materials. It is commonly used in the first process of crushing various rocks with a compressive strength of less than 320MPa into medium grain size at one time.
24HOURS：+86 15237197009
This series of jaw crusher runs smoothly and has a long service life. It is equipped with a double wedge block discharge opening adjustment system, which can adjust the equipment discharge opening conveniently and quickly. Even in the case of idling, the discharge opening can be adjusted within a few minutes. When it reaches the predetermined value, it can realize automation under the cooperation of hydraulic system or screw system, which is simpler, safer and faster than the traditional jaw crusher gasket-type discharge adjustment system.
Advantages1. Deep "V"-shaped crushing cavity less crushing blind areas and increased feed volume and output.
2. The equipment has a good energy-saving effect with a single machine energy-saving 15%-30% reduced power consumption and low operating costs.
3. The discharge port and the discharge port gasket-type adjustment device have a wide adjustment range, which is convenient and reliable.
4. The equipment has strong flexibility and can meet the requirements of different users.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Feed opening(mm） | Max feeding size(mm） | Adjusting range of discharge opening(mm） | Processing capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Motor power(kw) | Total weight(t) |
| PE-150x250 | 150x250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 |
| PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 |
| PE-200x350 | 200x350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 |
| PE-250x400 | 250x400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 2.8 |
| PE-400x600 | 400x600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 7 |
| PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 |
| PE-600x900 | 600x900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 |
| PE-750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 |
| PE-900x1200 | 900x1200 | 750 | 95-165 | 220-380 | 200 | 8P 160 | 52 |
| PE-1000x1200 | 1000x1200 | 850 | 195-265 | 315-500 | 200 | 8P 200 | 55 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-240 | 100.9 |
| PE-1500x1800 | 1500x1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 355 | 139 |
| PEX-150x750 | 150x750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 |
| PEX-250x750 | 250x750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 |
| PEX-250x1000 | 250x1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 |
| PEX-250x1200 | 250x1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 |
| PEX-300x1300 | 300x1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 |
Related Cases
Product Introduction
Advantages
Technical Parameters

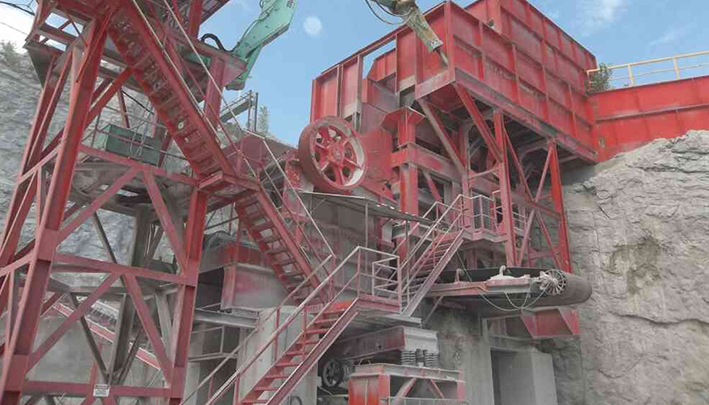

Throughput：150 t/h
