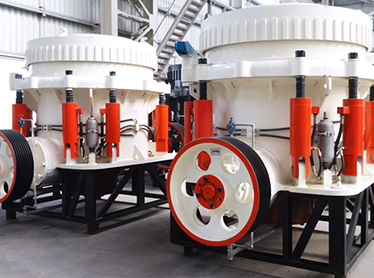

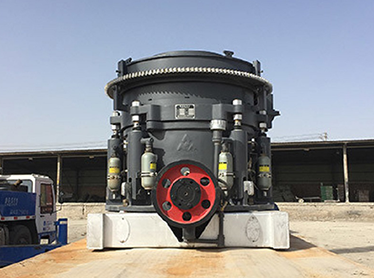

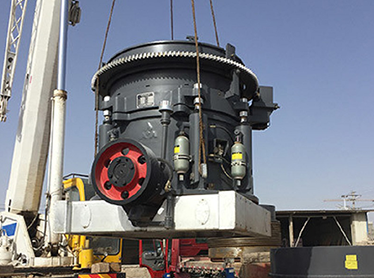

Multi-cylinder hydraulic cone crusher is a new type of cone crusher developed by taking advantage of the advantages of single-cylinder hydraulic cone crusher. Adopt advanced technology and optimized design to improve performance crushing capacity and work efficiency.
24HOURS：+86 15237197009

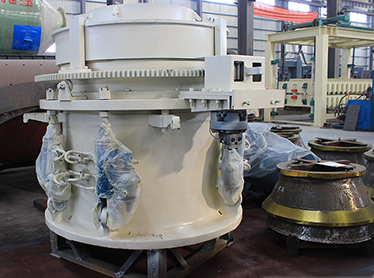

The multi-cylinder hydraulic cone crusher is mainly composed of a fixed cone part, a moving cone part, an eccentric sleeve part, a transmission part, a frame part, an adjustment ring part, a feeding bin part, a discharge port adjustment part, a locking protection cylinder part, and a fan part. , motor department, hydraulic station, lubrication station and special tool department and other components.
Advantages1. High crushing ratio and high production efficiency.
2. Low consumption of wearing parts and low operating cost.
3. High degree of automation of hydraulic protection and hydraulic cavity cleaning, reducing production and maintenance time.
4. Different types of crushing chambers are available.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Cavity (coarse/fine) | Close Side Feed opening(mm) | Min (mm) | Capacity (tph) | Power KW(HP) |
| HPT300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250(350) |
| C2 Coarse | 210 | 20 | 190-380 | 250(350) | |
| M Medium | 150 | 16 | 175-320 | 250(350) | |
| F1 Fine | 105 | 13 | 110-260 | 250(350) | |
| F2 Extra Fine | 80 | 10 | 100-240 | 250(350) | |
| HPT500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400(500) |
| C2 Coarse | 290 | 30 | 380-700 | 400(500) | |
| M Medium | 210 | 22 | 330-605 | 400(500) | |
| F1 Fine | 130 | 16 | 270-535 | 400(500) | |
| F2 Extra Fine | 95 | 13 | 200-430 | 400(500) | |
| HPT800 | C1 Extra Coarse | 350 | 38 | 545-1200 | 630(850) |
| C2 Coarse | 300 | 32 | 495-1050 | 630(850) | |
| M Medium | 265 | 25 | 470-950 | 630(850) | |
| F1 Fine | 220 | 17 | 385-730 | 630(850) | |
| F2 Extra Fine | 150 | 14 | 310-600 | 630(850) | |
| F3 Extra Fine | 90 | 10 | 260-550 | 630(850) |
