Spring Cone Crusher

Spring cone crusher is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, etc. The type of crushing cavity is determined by the use of the ore: the standard type is suitable for medium crushing, the medium type is suitable for fine crushing, and the short head type is suitable for ultra-fine crushing.

24HOURS：+86 15237197009

Get a quote now

90-230 mmFeed size
100-1200 t/hCapacity
3-500 tWeight

Product Introduction

Advantages

Technical Parameters

Widely used in ore crushing, aggregate production and other industries

Advantages

1. High crushing efficiency, uniform product particle size and suitable particle shape.
2. The unique dust-proof sealing structure prolongs the oil change cycle and service life of its spare parts.
3. The key components are made of special materials, which are more sturdy and stable.
4. The crushing arm is long, the stroke is large, the crushing force is large, and the output is high.

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

High yield/Efficiency/Low cost

Ore Screening

Quality First / Precise Grain Size

Ore Grinding

Granularity meets requirements

Magnetic Separation

Simple Structure/Easy Operation

Flotation Process

Low Investment/High Return

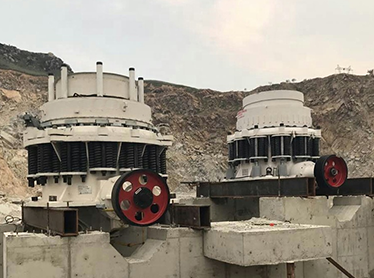

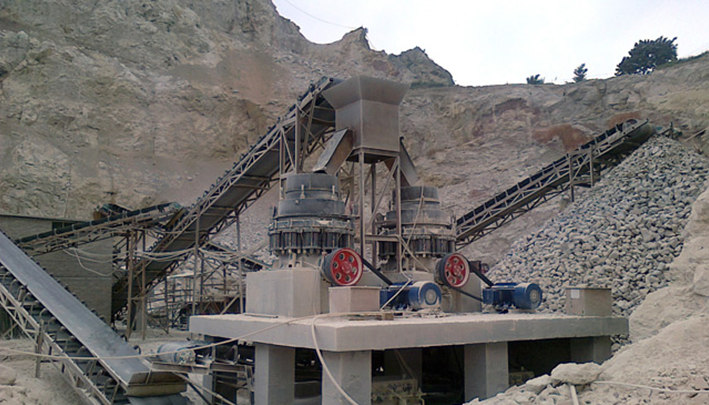

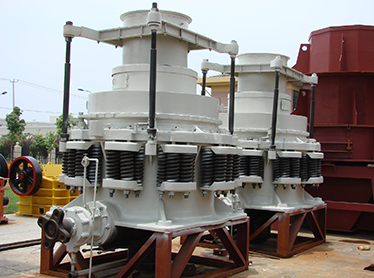

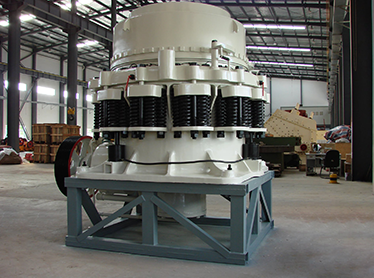

Picture Display

Technical Parameters

Model	Cavity	Cone big end diameter(mm)	Standard			Short head			Main motor
YS200(2ft)	F	610	72	6-38	16-54	35	3-13	9-36	22	490
	M		95	10-25	11-52	51	5-16	16-49	22	490
	C		109	9-38	18-41				22	490
YS300(3ft)	F	914	102	9-22	45-90	41	3-13	27-90	75	490
	M		175	13-38	59-162	60	3-16	27-99	75	490
	C		178	25-38	117-162	76	6-19	58-126	75	490
YS400(4ft)	F	1219	131	9-31	63-165	57	5-16	50-150	110	490
	M		156	13-38	99-198	73	10-16	90-144	110	490
	C		191	19-51	140-306	89	13-19	140-180	110	490
	EC		250	25-51	189-315	117	13-25	144-216	110	490
YS450(4¼ft)	F	1295	137	13-31	108-180	64	3-16	36-162	155	490
	M		210	16-38	131-252	89	6-16	81-162	155	490
	C		241	19-51	171-347	105	10-25	108-225	155	490
	EC		259	25-51	243-356	33	19-25	207-234	155	490
YS550(5½ft)	F	1676	209	16-38	180-340	70	5-13	90-209	240	490
	M		241	22-51	256-414	89	6-13	136-281	240	490
	C		269	25-64	297-630	133	10-19	190-336	240	490
	EC		368	38-64	428-675	133	13-19	253-336	240	490
YS700(7ft)	F	2134	278	19-38	378-720	105	5-16	190-408	315	490
	M		334	25-51	603-990	133	10-19	354-508	315	490
	C		369	31-64	783-1260	178	13-25	454-599	315	490
	EC		460	38-64	873-1351	203	16-25	508-653	315	490
YS750(7ft)	F	2134	278	19-38	540-1026	105	5-16	218-463	400	490
	M		334	25-51	855-1413	133	10-19	404-580	400	490
	C		369	31-64	1116-1800	178	13-25	517-680	400	490
	EC		460	38-64	1242-1926	203	16-25	580-744	400	490
