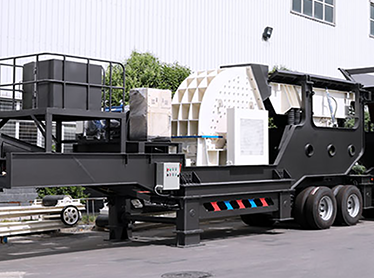

Wheeled Mobile Crusher

The mobile crushing station is flexible, convenient and highly maneuverable, and can crush materials on-site. The mobile crushing and screening equipment consists of primary crushing station, secondary crushing and screening station, and belt conveyor.

24HOURS：+86 15237197009

Get a quote now

100-380 mmFeed size
50-500 t/hCapacity
43.5-64 tWeight

Product Introduction

Advantages

Technical Parameters

Widely used in ore crushing, aggregate production and other industries

The tire-type mobile crushing station is mainly used for metallurgy, chemical industry, building materials, hydropower and other materials processing that often need to be relocated, especially for the operation of mobile stone materials such as highways, railways, hydropower projects, etc. , the scale and finished material requirements are different using a variety of configuration forms.

Advantages

1. The tire mobile crushing station has a short length and a small turning radius, and can be flexibly driven on ordinary roads and operating areas.
2. The integrated unit equipment installation form reduces the consumption of materials and man-hours, and improves the flexibility of site stationing.
3. The mobile crushing station can process materials on site, which greatly reduces the transportation cost of materials.
5. The tire mobile crushing station can be combined into various crushing and screening systems such as coarse crushing, medium crushing and fine crushing according to actual needs.

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

High yield/Efficiency/Low cost

Ore Screening

Quality First / Precise Grain Size

Ore Grinding

Granularity meets requirements

Magnetic Separation

Simple Structure/Easy Operation

Flotation Process

Low Investment/High Return

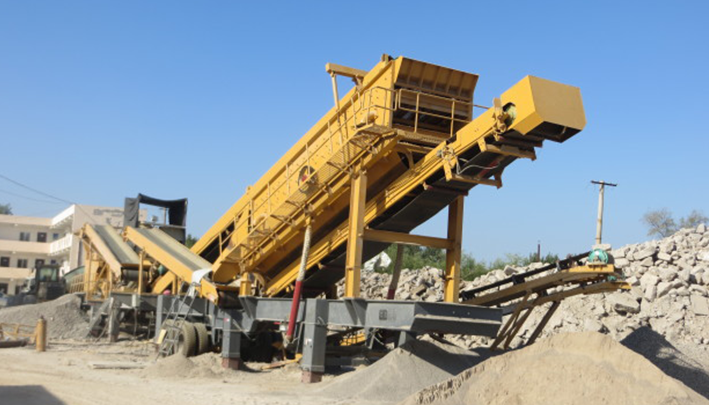

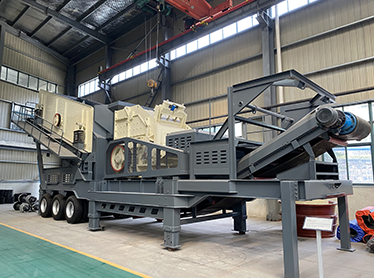

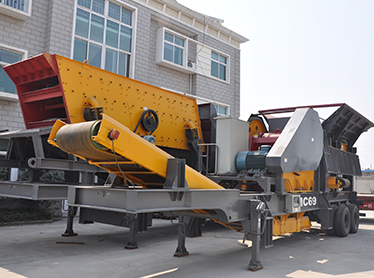

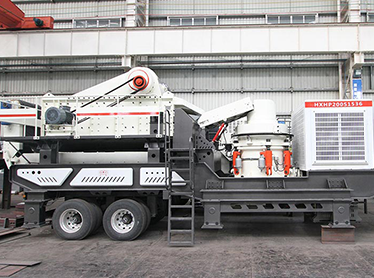

Picture Display

Technical Parameters

Model	Discharge Height of Main Belt(mm)	Transport Length(mm)	Side Belt Discharge Height(mm)	Motor Power(kw)	Shipping Weight (t)
DSM938E69L	3200	11900	2800	180	43.5
DSM938FW1214丨丨L	3200	11900	2800	250	50
DSM1142E71L	3500	13300	3100	200	59
DSM1142FW315丨丨L	3500	13300	3000	300	59
MG938E69	3200	11900	2800	200	50
MG1142E710	3500	13100	2800	200	40
MG1349E912	3500	14600	3100	300	59
MG1349SK87	3700	15400	3000	300	59
MG1349SK110	3000	10800	2600	150	40
MG938F1010	3200	11900	2800	180	43.5
MG938G1210	3500	13100	3000	300	59
MG1142F1214	3500	13100	3000	300	59
MG1142F1315	3200	13100	3300	300	64
