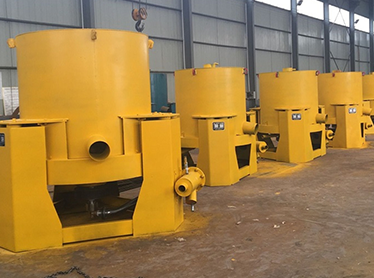

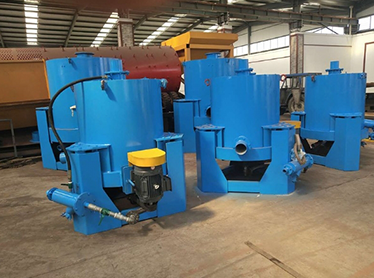

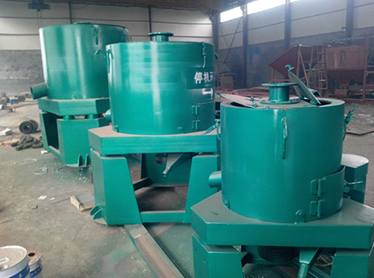

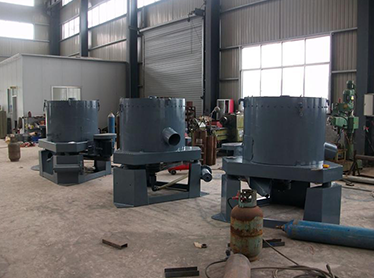

The ore centrifuge is composed of feeding pipes, racks, tailings troughs, motors, transmission bearings and beneficiation components. The beneficiation components are divided into inner and outer layers. The inner vertebral body is made of stainless steel with annular grid bars, and the outer layer is made of ordinary steel plates, which form a closed water jacket with the inner layer.
24HOURS：+86 15237197009
The beneficiation centrifuge is a new type of enhanced gravity beneficiation equipment based on the centrifugal principle. There are two types of centrifugal concentrators, one is intermittent discharge type, and the other is automatic continuous discharge type.
Advantages1. The beneficiation enrichment ratio is high, the concentrate mineral rate is small, and the grade is high.
2. The processing capacity is large, the operation efficiency is high, and the mine can be continuously fed and discharged.
3. High degree of automation, easy operation and management, low power consumption, low daily maintenance of equipment, and low production cost.
4. It occupies a small area and is easy to integrate into the configuration of the existing beneficiation production line.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | STL-20 | STL-30 | STL-60 | STL-80 | STL-100 |
| Capacity (t/h) | 0.2-0.6 | 2-3 | 10-20 | 35-45 | 60-120 |
| Feed particle size (mm) | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
| Feeding concentration (%) | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
| Backflushing water volume (t/h) | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
| Concentrate output (kg/time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
| Power (kw) | 0.75 | 1.5 | 5.5 | 11 | 18.5 |
| Cone speed (r/min) | 800 | 600 | 460 | 400 | 360 |
| Water pressure (Mpa) | 0.04 | 0.12 | 0.25 | 0.35 | 0.4 |
| Dimensions (mm) | 790x785x790 | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2500x2000x2400 |
| Weight (kg) | 145 | 400 | 1300 | 2000 | 2500 |

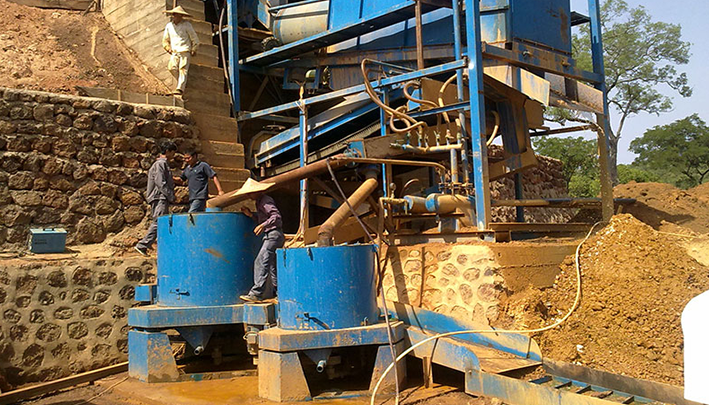

Related Cases
Product Introduction
Advantages
Technical Parameters
Throughput：150 t/h
Material：Gold ore
