Cement mills are widely used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation and other production industries, dry or wet grinding of various ores and other grindable materials.
24HOURS：+86 15237197009

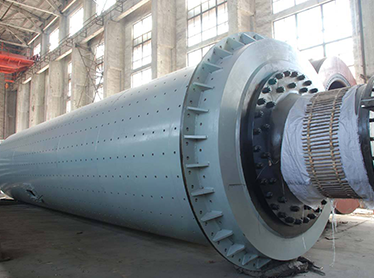

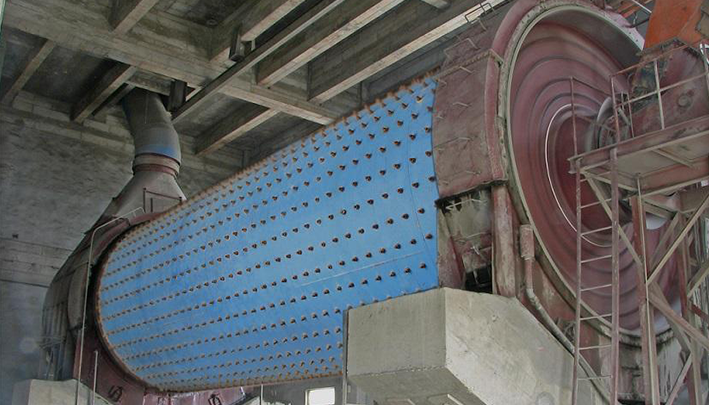

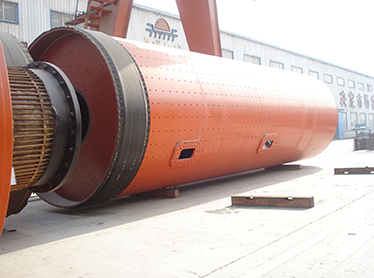

Cement mill is one of the main cement equipment. It is the key equipment for crushing materials after crushing. It plays an important role in cement production line and cement production process.
Advantages1. The hollow shaft is made of cast steel, and the inner lining can be removed and replaced.
2. There is a wear-resistant lining plate in the cylinder, which has good wear resistance.
3. Smooth operation and reliable work.
4. According to the material and ore discharge method, dry type cement mill and wet type lattice type cement mill can be selected.
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Product Specification (m) | Mill Form | Transmission form | Reducer | Motor Power (kw) | Capacity (t/h) | Total Weight (t) | |
| Model | Speed Ratio | ||||||
| φ1.83×7 | Open Flow | Edge | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| φ2.2×7.5 | Open Flow | Edge | ZD70 | 5 | 380 | 8-10 | 64.8 |
| φ2.2×11 | Open Flow | Edge | D110 | 35.5 | 630 | 12-13 | 104.6 |
| φ2.2×13 | Open Flow | Edge | D110 | 35.5 | 630 | 16-18 | 114 |
| φ2.4×13 | Open Flow | Edge | D110 | 35.5 | 800 | 20-23 | 130.6 |
| φ2.6×13 | Open Flow | Edge | MFY100 | 19.5 | 1000 | 28-32 | 158 |
| φ3×9 | Open Flow | Edge | D125 | 41.2 | 1000 | 28-36.5 | 167 |
| φ3×11 | Open Flow | Edge | D140 | 42.8 | 1250 | 36-47 | 180 |
| φ3.2×13 | Open Flow | Edge | D140 | 36.5 | 1600 | 45-50 | 225 |
| φ3.5×13 | Open Flow | Edge | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
| φ3.8×13 | Open Flow | Center | MFY250 | 16.5 | 2500 | 60-62 | 320 |
| φ4.2×13 | Open Flow | Center | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
| φ4.6×14 | Open Flow | Center | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
Related Cases
Product Introduction
Advantages
Technical Parameters
Throughput：150 t/h
Material：Gold ore
