The rod mill is mainly composed of motor, main reducer, transmission part, cylinder part, main bearing, slow transmission part, feeding part, discharging part, annular seal, thin oil lubrication station, large and small gear jet lubrication, basic part, etc. composition.
24HOURS：+86 15237197009

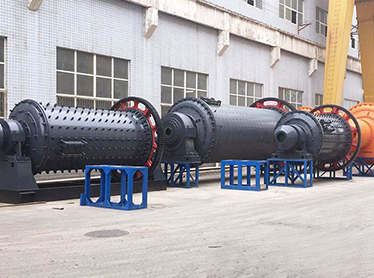

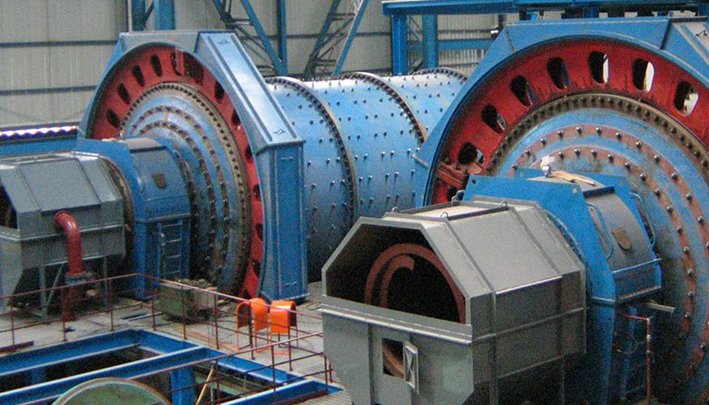

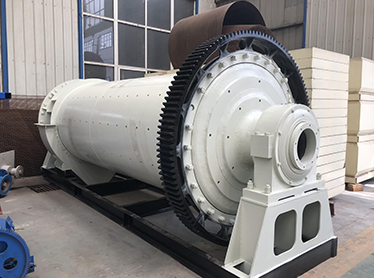

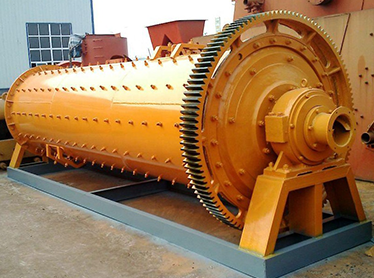

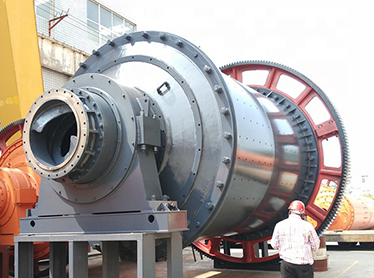

A rod mill is a mill in which the grinding body loaded in the cylinder is a steel rod. Rod mills are generally of wet overflow type, which can be used as primary open-circuit grinding, and are widely used in primary grinding of artificial stone sand, mineral processing plants, and power departments of chemical plants.
Advantages1. Save power, save more than 40% of power compared to old equipment.
2. The particle size of the product is relatively uniform, and the coarse particles and sludge are less.
3. Uniform discharge and high output.
4. Suitable for ores with different hardness (Mohs hardness 5.5~12).
The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.
Ore Crushing
High yield/Efficiency/Low cost
Ore Screening
Quality First / Precise Grain Size
Ore Grinding
Granularity meets requirements
Magnetic Separation
Simple Structure/Easy Operation
Flotation Process
Low Investment/High Return
Technical Parameters| Model | Shell Specifications(mm) | Shell Rotation Speed(r/min) | Feeding Size(mm) | Discharging Size(mm) | Capacity | Power | Weight | |
| Diameter | Length | (t/h) | (kw) | (kg) | ||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5500 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6100 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 12000 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 16800 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 29000 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 34800 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 37000 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 54000 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 86000 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 94000 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 137000 |
